轴流通风机

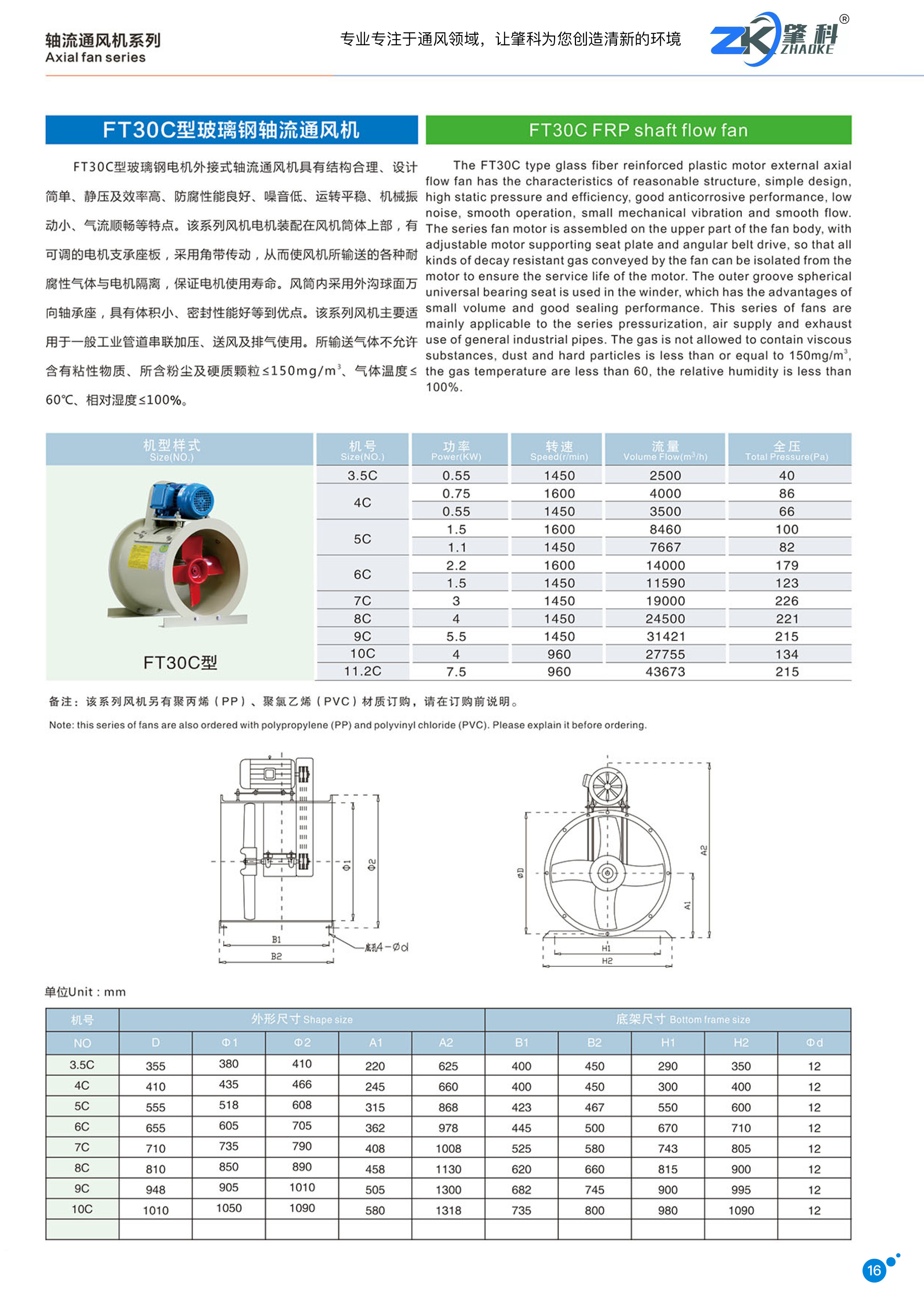

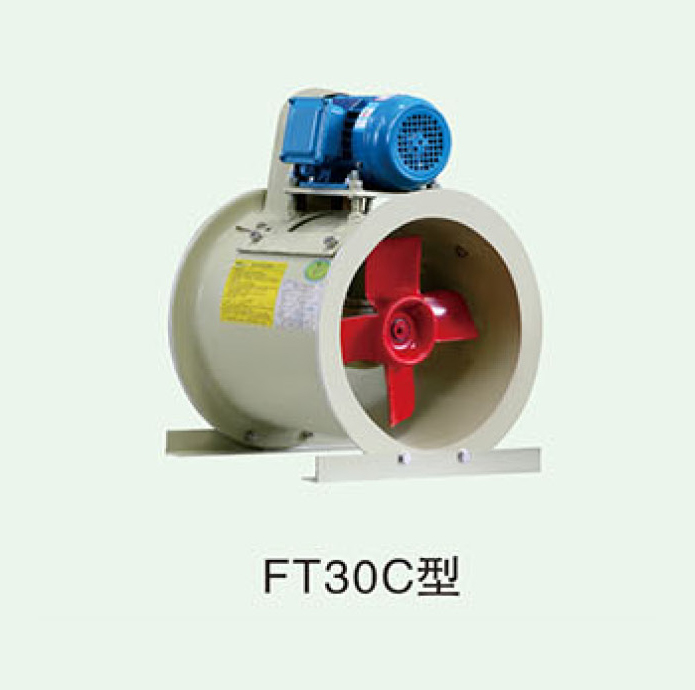

FT30C型玻璃钢轴流通风机
FT30C型玻璃钢电机外接式轴流通风机具有结构合理、设计
简单、静压及效率高、防腐性能良好、噪音低、运转平稳、机械振动小、气流顺畅等特点。该系列风机电机装配在风机筒体上部,有可调的电机支承座板,采用角带传动,从而使风机所输送的各种耐腐性气体与电机隔离,保证电机使用寿命。风筒内采用外沟球面万
向轴承座,具有体积小、密封性能好等到优点。该系列风机主要适
用于一般工业管道串联加压送风及排气使用。所输送气体不允许含有粘性物质、所含粉尘及硬质颗粒≤150mg/m、气体温度≤60℃、相对湿度≤100%。
<
FT30C型玻璃钢轴流通风机
FT30C型玻璃钢电机外接式轴流通风机具有结构合理、设计
简单、静压及效率高、防腐性能良好、噪音低、运转平稳、机械振动小、气流顺畅等特点。该系列风机电机装配在风机筒体上部,有可调的电机支承座板,采用角带传动,从而使风机所输送的各种耐腐性气体与电机隔离,保证电机使用寿命。风筒内采用外沟球面万
向轴承座,具有体积小、密封性能好等到优点。该系列风机主要适
用于一般工业管道串联加压送风及排气使用。所输送气体不允许含有粘性物质、所含粉尘及硬质颗粒≤150mg/m、气体温度≤60℃、相对湿度≤100%。

FT30C FRP shaft flow fan
The FT30C type glass fiber reinforced plastic motor external axial flow fan has the characteristics of reasonable structure, simple design, high static pressure and efficiency, good anticorrosive performance, low noise, smooth operation, small mechanical vibration and smooth flow. The series fan motor is assembled on the upper part of the fan body,with adjustable motor supportingseatplate and angular belt drive,so that all kinds of decay resistant gas conveyed by the fan can be isolated from the motor to ensure the service life of the motor. The outer groove spherical universal bearing seat is used in the winder, which has the advantages of small volume and good sealing performance. This series of fans are mainly applicable to the series pressurization,air supply and exhaust use of general industrial pipes.The gas is not allowed to contain viscous substances, dust and hard particles is less than or equal to 150mg/m the gas temperature are less than 60, the relative humidity is less than100%.
